HOME > English > Product Center > Biomass boiler

Product model:Automatic environment-friendly boiler

Release time:2017-05-17 Browse number:200people information sources:

Automatic control of indoor temperature Automatic control of coal feeding quantity

Automatic control of hot water circulation Automatic fire prevention to maintain combustion

Automatic alarm of abnormality Colorless smoke discharge and environmental protection

Quick temperature rise and stable thermal power Convenient operation and beautiful appearance


tel:024-23712222

Product introduction

Our full-automatic environment-friendly boiler is widely applied in various required environments, including bathing, factory, shed, villa and office, etc. Such equipment uses environment-friendly coal as the main fuel, so the smoke discharged is colorless, clear and transparent, reaching the environmental protection requirements in the region category I and effectively protecting the environment. The product was awarded the title "Environment-friendly New Product of Liaoning Province".


Application scope

Product features

Automatic control of indoor temperature:

Indoor temperature settable, and automatic operation or shutdown of boiler as per the set temperature.

Automatic control of hot water circulation:

Arbitrary adjustment of coal feeding quantity as per the required thermal power.

Automatic fire preservation to maintain combustion:

When the temperature reaches the set requirement, the boiler will automatically enter fire preservation state; when the temperature is lower than the set requirement, the boiler will automatically enter the operating state.

Automatic alarm of abnormality:

In the event of abnormal water temperature, excessively low water level or faults of parts such as circulating pump and sensor, the equipment will alarm automatically and enter the fire preservation state.

Quick temperature rise and stable thermal power:

The tests have proved that its temperature rise is faster than other companies' products by 4- 5 minutes under the circumstance of same water inlet temperature and coal quantity and quality.

Colorless smoke discharge and environmental protection::

With combination of unique side combustion method and sufficient secondary combustion, the smoke is combusted more thoroughly.

Energy-saving and efficient environment-friendly fuel:

The equipment uses environment-friendly fuel to realize a better effect of environmental protection and energy saving.


技術(shù)參數(shù)

Model Power Heat supply area( m2) Operating pressure( Mpa) Heat efficiency(%) onsumption( kg/h) Rated water outlet/ return temperature (°C) Water capacity of boiler (kg) Rated voltage( V/kw)
Parameter MW Kcal/h

CZML-0.058

0.058

5×104

400-600

Atmospheric pressure

≥75

10-12

85/60

260

220/0.31

CZML-0.12

0.12

10×104

900-1200

Atmospheric pressure

≥75

22-24

85/60

360

220/0.43

CZML-0.24

0.24

20×104

1700-2100

Atmospheric pressure

≥75

48-52

85/60

580

220/0.93

CZML-0.35

0.35

30×104

2400-3000

Atmospheric pressure

≥75

70-76

85/60

830

220/0.93

CZML-0.48

0.48

40×104

3800-4000

Atmospheric pressure

≥75

120-125

85/60

1080

220/1.68

CZML-0.7

0.7

60×104

5500-5800

Atmospheric pressure

≥75

132-144

85/60

1380

220/1.68

CZML-1.4

1.4

120×104

11000-12000

Atmospheric pressure

≥76

300

85/60

3500

380/-

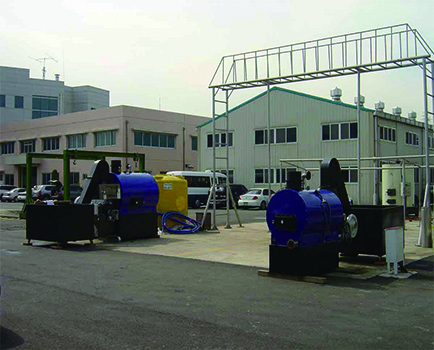

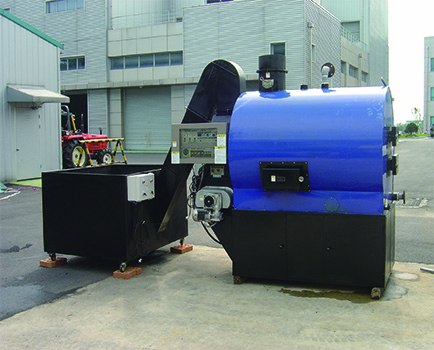

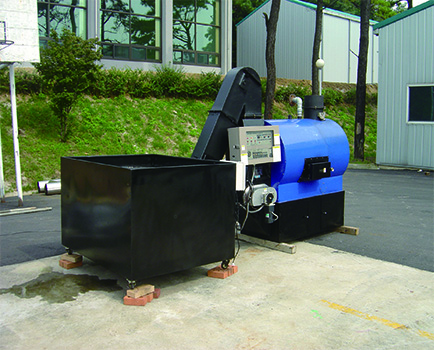

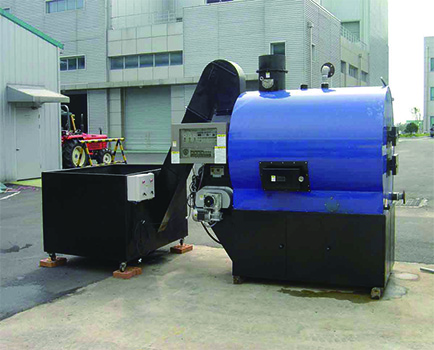

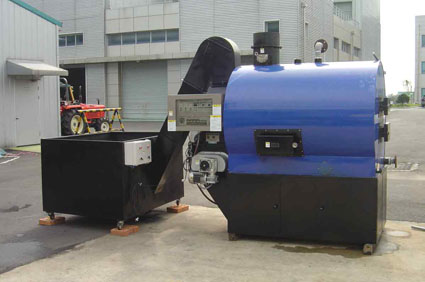

Case display
