HOME > English > Product Center > Grain dryer > Large grain dryer

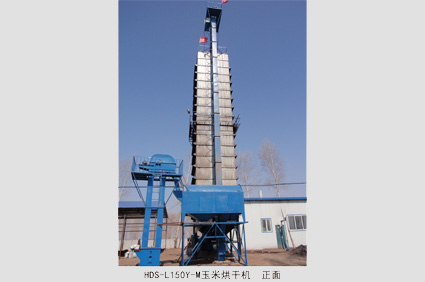

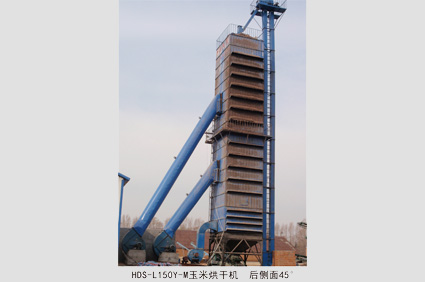

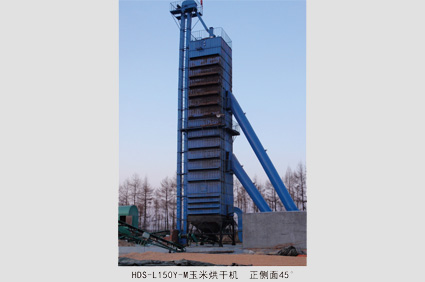

Product model:HDS-L150Y-M

Release time:2017-05-17 Browse number:54people information sources:

National agricultural subsidized product


Application of smart drying technology: automatic materials loading, automatic circulation, automatic temperature control and automatic alarm.

Specialized drying: rice, corn, soybean, sorghum, barley, wheat and other corns.


tel:024-85856600 85856699


Product introduction

The air is used as the medium for cold drying. The drying technology such as mixed flow is applied to scientifically realize the grain drying processing, including preheating, heating, tempering and cooling, etc.

After dried up, the grain has uniform moisture, natural color and low crackle ratio.

The equipment is applicable to drying of corn, sorghum, rice, soybean, barley, wheat and their seeds.


Itemized introduction


Application scope


Product features

The equipment heats grain through mixed flow of hot air, and the hot temperature is 120℃ -160℃. The grain is overturned through the angular box, so it has features of large heating area, uniform heating, stable process, continuous operation and costs saving.

The equipment is of combined structure and adopts heat insulation. The enclosure is provided with rain proofing, so it has high heat efficiency and saves energy. In the cold environment, the moisture elimination rate reaches 12-16%, so the equipment can eliminate the moisture of high-moisture grain to the safety moisture level.

Regulating devices are equipped for grain flow and hot air conveying positions of this equipment, and required drying indexes under different climate conditions are provided for grains in different categories and with different moisture.

An automatic monitoring and protection device is equipped to dynamically measure, observe and control the material level, grain temperature, air temperature and operation of matched auxiliary equipment to ensure the normal and safe operation.

The equipment is easy and convenient to install and occupies a small area.


Configuration and parameters

Model

Overall dimensions (mounting dimensions)

mm

Land occupation of equipment

(㎡)

Recommended site

(㎡)

Handling capacity

t

Moisture eliminate rate

%

Heat capacity

MW

Hot air pipe

(pc)

Capacitance

KW

Coal consumption

(Ton)

Equipment weight

(Ton)

HDS-L100Y-M

2800×2200×18000

400

1000-1200

100

12-15

1.4

2

50

2-3

33

HDS-L150Y-M

2800×2200×20000

400

1300-1500

150

12-15

2.1

2

71

4-5.5

35

HDS-L200Y-M

3200×3200×22000

500

2200-3000

200

12-15

2.1

2

107

5-7

44

HDS-L300Y-M

3700×3200×25000

550

3500-4500

300

12-15

4.2

3

148

10-12

70

HDS-L500Y-M

4400×3700×30000

750

4500-6000

500

12-15

7

3

267

15-18

110

HDS-L600Y-M

4400×3700×31000

750

4500-6000

600

12-15

8.4

3

280

16-19

120

HDS-L800Y-M

5200×5200×28000

900

5000-7000

800

12-15

112

4

389

21-24

220

HDS-L1000Y-M

5200×5200×33000

900

5000-7000

1000

12-15

112

4

464

25-28

240


Product qualification

Case display

Learn more

The previous:HDS-L200Y-M

The next:The end
